![WISDOM NWCR-60: High-efficiency Charging Rack](/public/product/charger/nwcr-60.jpg)
The NWCR-60/A is a double sided charger rack with 60 charging ports, 30 per side. Each lamp charges independently with an LED per charge port to indicate charging or fully charged.
![WISDOM NWCR-60: charging](/public/product/charger/nwcr-60-front.jpg)
Faster charging
After applying the intelligent fast charging technology, the time to fully charge the lamp is much less than before. For WISDOM KL5M cap lamp, it takes only 3 hours to get full charge; while for WISDOM KL8M, less than 5 hours is enough.
![WISDOM NWCR-60 queue charging](/public/product/charger/nwcr-60-side.jpg)
Compared with the past generations of the chargers, the charger PCB of NWCR-60 is improved to be more efficient. Even charged in full power, it generates only a little heat.
![Close-up of NWCR-60 headlamp on Charging Rack 3](/public/product/charger/charger-rack-headlamp-charging-3.jpg)
Wide range voltage
Voltage range of the AC power supply is: 100~240V
The wide range makes the charger applicable to specific voltage standard in all countries.
![Close-up of NWCR-60 Charging Rack 2](/public/product/charger/close-up-2.jpg)
Environmentally-friendly
The Charging rack is designed in accordance with the Restriction of Hazardous Substances Directive (RoHS). RoHS standard is strictly followed in the whole process, from choosing the material to designing the production technic.
![battery box of NWCR-60 Charging Rack](/public/product/charger/charger-rack-battery-box.jpg)
Technical specifications
Features | Specifications | |
---|---|---|
Model | NWCR-60 | NWCR-60A |
AC input | 100~240 V ± 10%, 11.4 A, 50~60 Hz | 100~240 V ± 10%, 17.2 A, 50~60 Hz |
DC output voltage | 4.20 V | 4.56 V |
DC output current | 1600 mA | 2400 mA |
Size | 122 x 41 x 176 cm; 48.0 x 16.1 x 69.3 in | |
Weight | 180 kg; 396.83 lb |

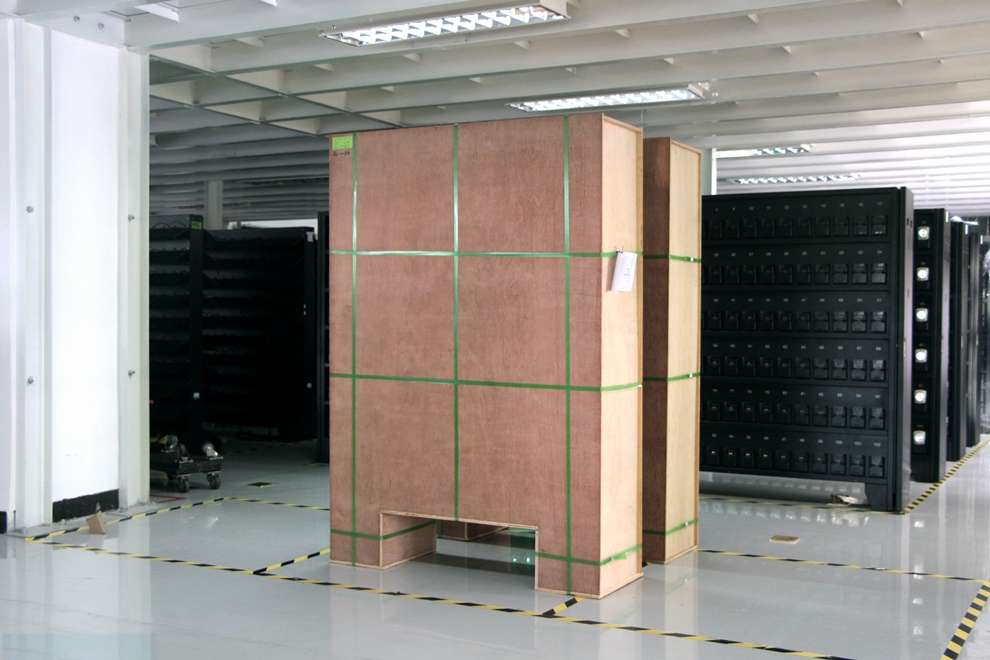

![package of NWCR-60 on Charger Rack](/public/product/charger/nwcr-60-package.jpg)
